Building Material SS304 30x30x3mm 50x50x5mm Equal 316 304 Stainless Angle Bar

Stainless Steel Angle Introduction

Stainless Angle, is a hot rolled stainless angle shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required. 304 Stainless Angle has a durable dull, grainy mill finish that is widely used for all types of fabrication projects that are exposed to the elements - chemical, acidic, fresh water, and salt water environments.

Equal and Unequal Stainless Steel Angles

Equal stainless steel angles are the most common ones. The smallest available size is 20x20x3 millimetres. Looking at bigger sizes, stainless steel angles can reach up to 200x200x20 millimetres. Bigger angle bars are usually special profiles with very rare use.

Unequal stainless steel angles also follow the sizes of the carbon steel counterparts. The smallest is the size of 20x10x3 millimetres and the biggest 200x150x15 millimetres. The standard length of stainless steel angle bars is 6 metres.

The most widely used of the stainless and heat resisting steels, 304 offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres. 304 Stainless Steel Angle is used for a wide variety of structural applications.304 has very good formability and can be readily welded by all common methods.

Stainless angle made from 304 alloy stainless steel is the most widely accepted stainless steel type in use today. It is not magnetic and cannot be heat-treated, meaning that it must be cold worked. It has very good corrosion resistance and can be machined easily. Because it has a good strength-to-weight ratio and is resistant to damage, it is suitable for several different applications. It is used in machinery, food processing equipment, furniture and other applications.

There are numerous benefits that are directly associated with 304 stainless steel angle products. These specific benefits help to provide the user with a product that is highly useful for its intended application. Some of the benefits directly related to stainless steel angle, include:

• Good corrosion resistance
• Easily machined
• Non-magnetic
• Good strength-to-weight ratio
• Damage resistant
• Excellent long term value

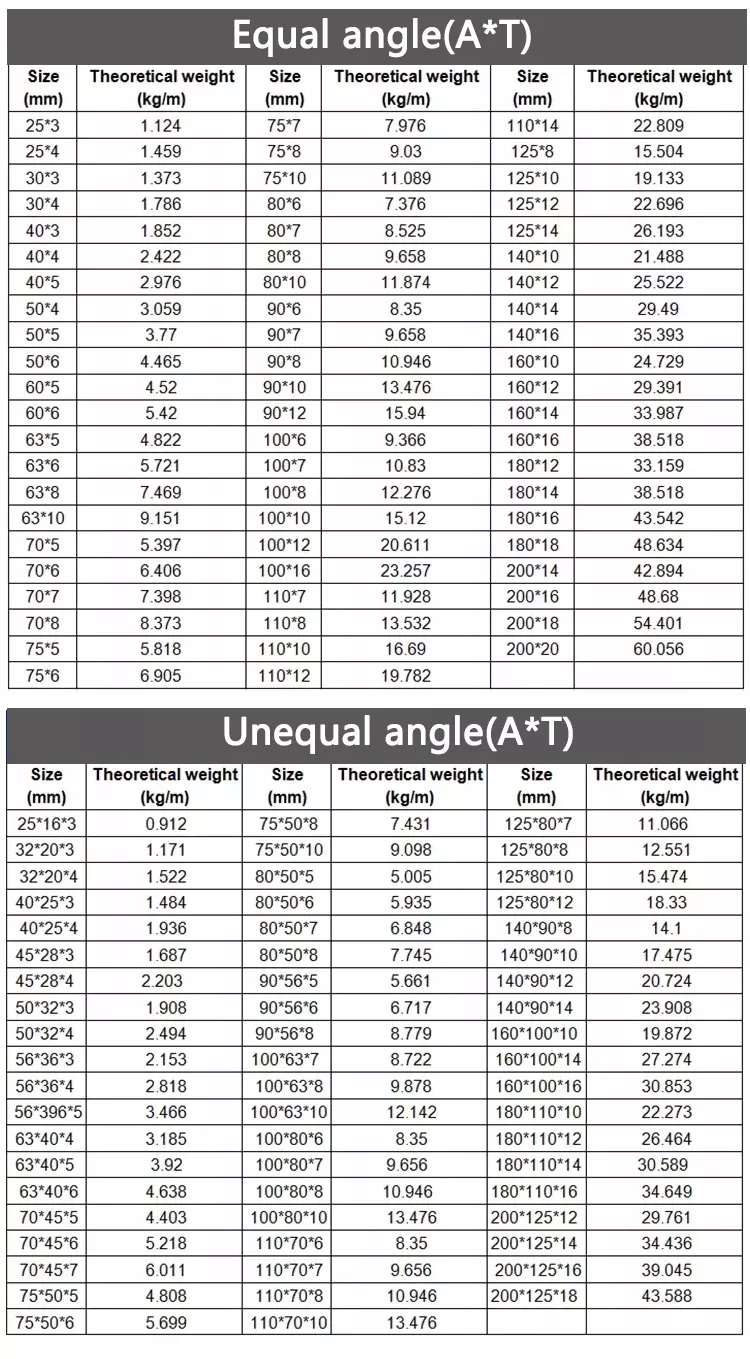

Stainless Steel Angle Parameter

Stainless Steel Angle Application

Stainless angle and 304 stainless steel angle products are used for numerous applications throughout a multitude of industries, some of which include:

• Aerospace
• Architectural
• Construction
• Chemical
• Food Processing
• Oil & Gas
• And more

Packing&Shipping

Stainless Angle Bar Packing Details:
- Packing in bundles;
- Packing with nylon covers;
- Packing in wooden cases;
- Export standard package or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
