Shandong Fulilai Steel Group has delivered high-quality,
long-lasting pre-painted steel sheet and painted steel coils with a
high-grade finish that is uniform in color, gloss, texture and
thickness. These durable products combine the strength of steel,
the protection against corrosion and the beauty of color into the
ideal product for you. Our prepainted steel products are available
in a variety of material thicknesses, widths, and lengths as we
offer multi-blanking and slitting services.
The color coated roll has light weight, beautiful appearance and
good anti-corrosion performance, and can be processed directly.The
color is generally divided into gray white, sea blue and brick red.
It is mainly used in advertising industry, construction industry,
home appliance industry, electrical appliance industry, furniture
industry and transportation industry. The coating used for color
coating roll shall select appropriate resin according to different
application environment, such as polyester silicon modified
polyester, polyvinyl chloride plastic sol, polyvinylidene chloride,
etc. Users can choose according to the purpose.
| What is Prepainted Steel? |

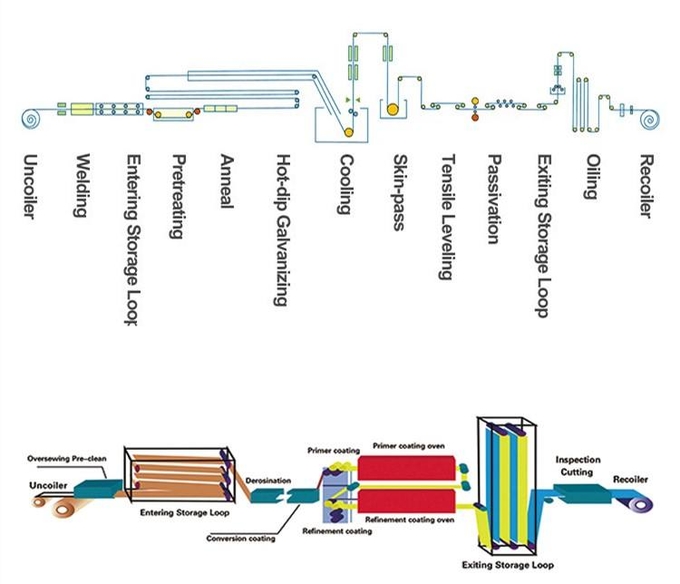

Pre-painted steel is a corrosion resistant substrate that has had
paint applied to both sides through a continuous coil coating
process, which produces a uniform paint finish. Fulilai Steel Group
produces pre-painted steel sheets and coils coils by directly
applying primer and paint on to steel sheet in a coating line. The
finished products can easily be roll formed, bent, and stamped
without tarnishing the paint quality.
| Specification of Pre-Painted Gavalume Steel Coils (PPGL) |
Products Name | Color Coated Aluminum Zinc Steel Coil Pre-Painted Gavalume Sheet |
| Standard | JIS G3312/G3318/G3322, ASTM A755/A755M, IS 14246:95, EN 10169-1or
equivalent |
Grade | G550,G350, etc |
| Material | 1050, 1060, 3003,3004,3005, 3105, 1100, 5005, 5052, 5754, etc. |
Paint film | Top:15-25 +5um
Back :5-8um |
| Surface Treatment | Coated/ Prepainted galvanized |
| Surface coating | PE, SMP, HDP, PVDF |
| Coil ID | 508mm / 610mm |
| Zinc Coating | AZ30~AZ150 |
| Primers | Epoxy, Polyster (PE) / High Durability Polyester (HDP) / Silicon
Modified Polyster (SMP)/ Polyvinylidene Difluoride (PVDF) |
| Top Coat | Regular Modified Polyster (RMP) |
| Back Coat | Epoxy, Polyster, Suitable for PU Bonding for Sandwich Panel |
| Coil Weight | 3-8 Tons |
| Thickness | 0.15-3.0mm |
| Width | 5-1850mm |
| Color | All RAL code or as customer's request |
| Length | Coil or as customer's request |
| Forms | Coils, sheet, strip, etc. |
| Packing details | waterproof paper+plastic film+iron packing+bunding or as per
customers request. |
| Delivery time | 15-21 days after receiving deposit |
| Prepainted Steel Applications |
The applications of PPGI Steel Coils are numerous, especially in
fabrication and manufacturing environments. Construction workers
mostly use Galvanized Coils for Roofing applications. They are also
used as sheet metal brakes in buildings.The biggest use of GI Sheets is for construction projects in homes,
offices, and factories. They resist corrosion,heat, and are easily
installable, making them best suited for roofing. They are also
used in the production of corrugated panels, drywall panel
profiles, ventilation systems, etc.
